The Power Grid: importance, innovations, network analysis and A.I. applications
The power grid (electrical or electricity grid) is a critical component of the energy system, serving as the backbone for power distribution from generation sources to end-users. Its importance extends across both developing and developed countries, with unique challenges and opportunities in each context. In developing countries, the grid is essential for improving energy access, reliability, and efficiency, while in developed nations, it is crucial for integrating high levels of renewable energy, enhancing energy security, and supporting the transition to a low-carbon economy.
The grid has undergone significant innovations over the past century, from the advent of alternating current to the development of smart grids and the integration of distributed energy resources. Despite its critical role, the grid often receives less attention compared to other components of the energy system, which can lead to under-investment and delays in necessary upgrades. The grid's development is also closely tied to the commodity market, particularly for metals like copper and aluminum, which are essential for electrical wiring and transmission infrastructure.
Importance
In developing countries, the grid is essential for improving energy access, reliability, and efficiency. Many of these countries have underdeveloped grid infrastructures, which presents both a challenge and an opportunity. The implementation of smart grids can help leapfrog traditional grid development, providing more reliable and efficient power distribution and integrating renewable energy sources more effectively. Smart grids can also help reduce power theft and improve revenue collection, which are significant issues in many developing regions.
In developed countries, the grid is crucial for integrating high levels of renewable energy, enhancing energy security, and supporting the transition to a low-carbon economy. The grid must be modernized to handle the variability of renewable energy sources like wind and solar, and to support new technologies such as electric vehicles and distributed energy resources (DERs). Advanced grid technologies, including digitalization and automation, are key to improving grid resilience and efficiency.
Innovations in Grid Technology

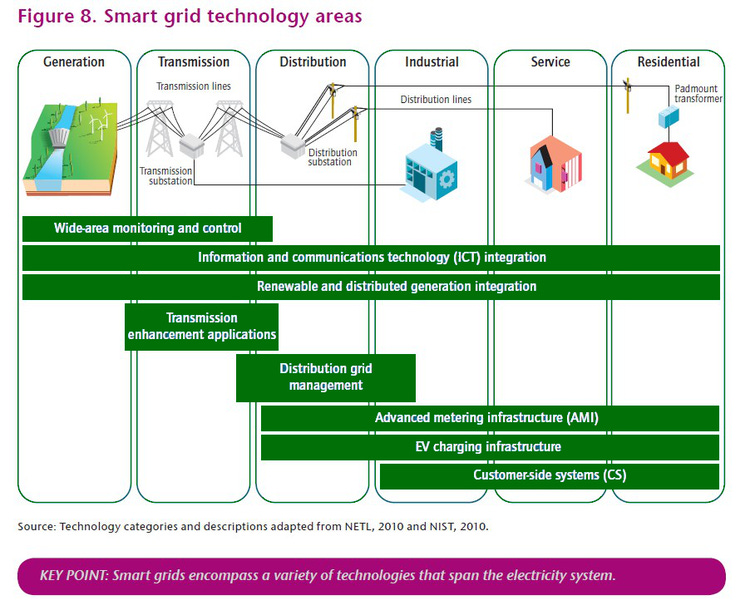

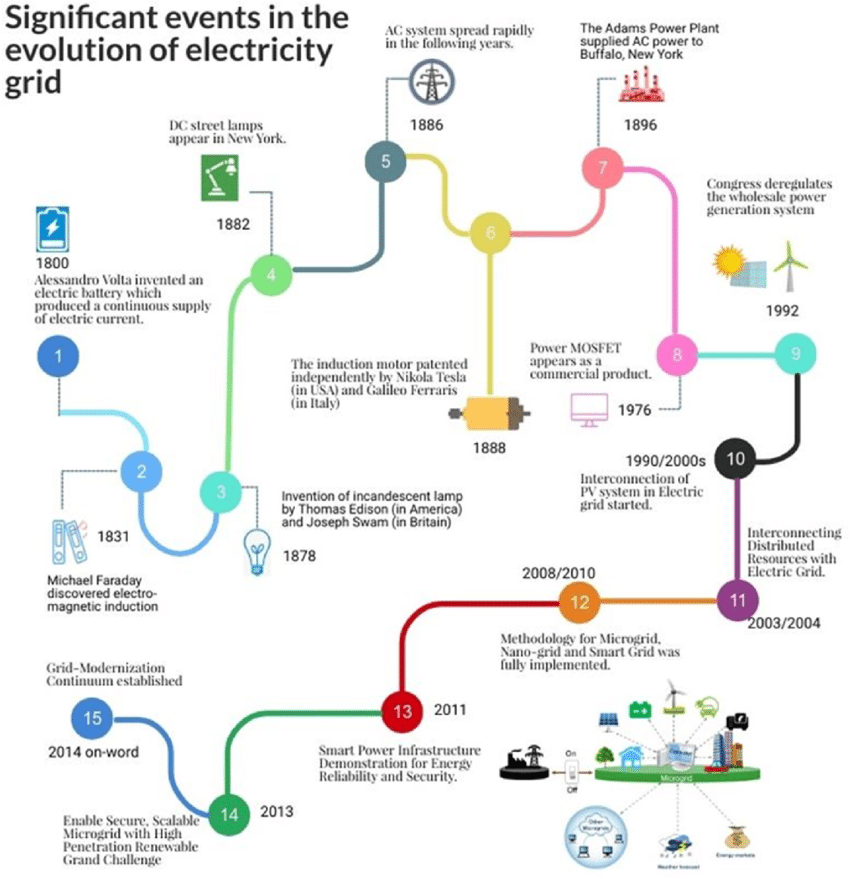

The grid has undergone significant innovations over the past century. The advent of alternating current (AC) was a major breakthrough, enabling the widespread distribution of electricity. More recent innovations include the development of smart grids, which use digital technology to monitor and manage the grid more effectively, and the integration of DERs, which allow for more decentralized and flexible energy systems.
Future innovations in grid technology, such as ultra-high voltage (UHV) transmission lines and grid-scale storage systems, will play a significant role in modernizing and expanding the electricity grid.
UHV lines can transmit electricity over long distances with minimal losses, making them more efficient and capable of integrating large-scale renewable energy projects. UHV transmission technology involves the use of extremely high voltage levels (1,000 kV for alternating current (AC) and ±800 kV for direct current (DC) or above) to transmit electricity over long distances with minimal losses. This technology is particularly beneficial for connecting remote renewable energy sources to urban centers where demand is high. Advantages:
Improved Efficiency: UHV lines significantly reduce energy losses during transmission, making them more efficient than traditional high-voltage lines
Greater Capacity: They can carry more power over longer distances, which is crucial for integrating large-scale renewable energy projects
Enhanced Reliability: UHV technology offers greater stability and reliability, even under adverse conditions, and reduces the need for reactive power compensation
In particular, China has been a global leader in UHV technology, with numerous projects that have significantly improved the country's energy transmission capacity. These projects facilitate the transfer of renewable energy from resource-rich western regions to the more industrialized eastern regions. China's UHV technology has also been employed in international projects, such as the Belo Monte Hydropower ±800kV UHV DC Transmission Project in Brazil, which supports the power needs of millions of people.
Grid-scale storage systems, including lithium-ion batteries, flow batteries, and pumped-storage hydropower, are essential for managing the variability of renewable energy sources and enhancing grid stability. Smart grid technologies, incorporating digital components like advanced sensors, smart meters, and automation systems, enable two-way communication between utilities and consumers, allowing for real-time adjustments and improved efficiency. Some of the grid-scale technologies are:
Lithium-Ion Batteries: The most widely used technology for grid-scale storage, offering high energy density and efficiency. They are suitable for a range of applications, from frequency regulation to peak shaving.
Flow Batteries: These batteries, such as vanadium redox flow batteries, offer long-duration storage without performance degradation over time, making them ideal for large-scale, long-term energy storage.
Pumped-Storage Hydropower: This traditional method involves pumping water to a higher elevation during low demand periods and releasing it to generate electricity during peak demand. It remains the most widely deployed storage technology globally.
Grid-scale storage systems store energy when production exceeds demand and release it when needed, thus balancing supply and demand. Applications are:
Renewable Smoothing: Grid-scale batteries can smooth the intermittency of renewable energy sources, making them more reliable and enhancing their integration into the grid.
Transmission and Distribution Deferral: Storage systems can defer the need for costly grid upgrades by managing peak loads and reducing congestion.
Emergency Backup: In regions prone to extreme weather, grid-scale storage can provide critical backup power, enhancing grid resilience.
These innovations not only improve grid performance but also support the integration of renewable energy sources and distributed energy resources, contributing to a more sustainable energy future.
Commodity Dependence and Challenges

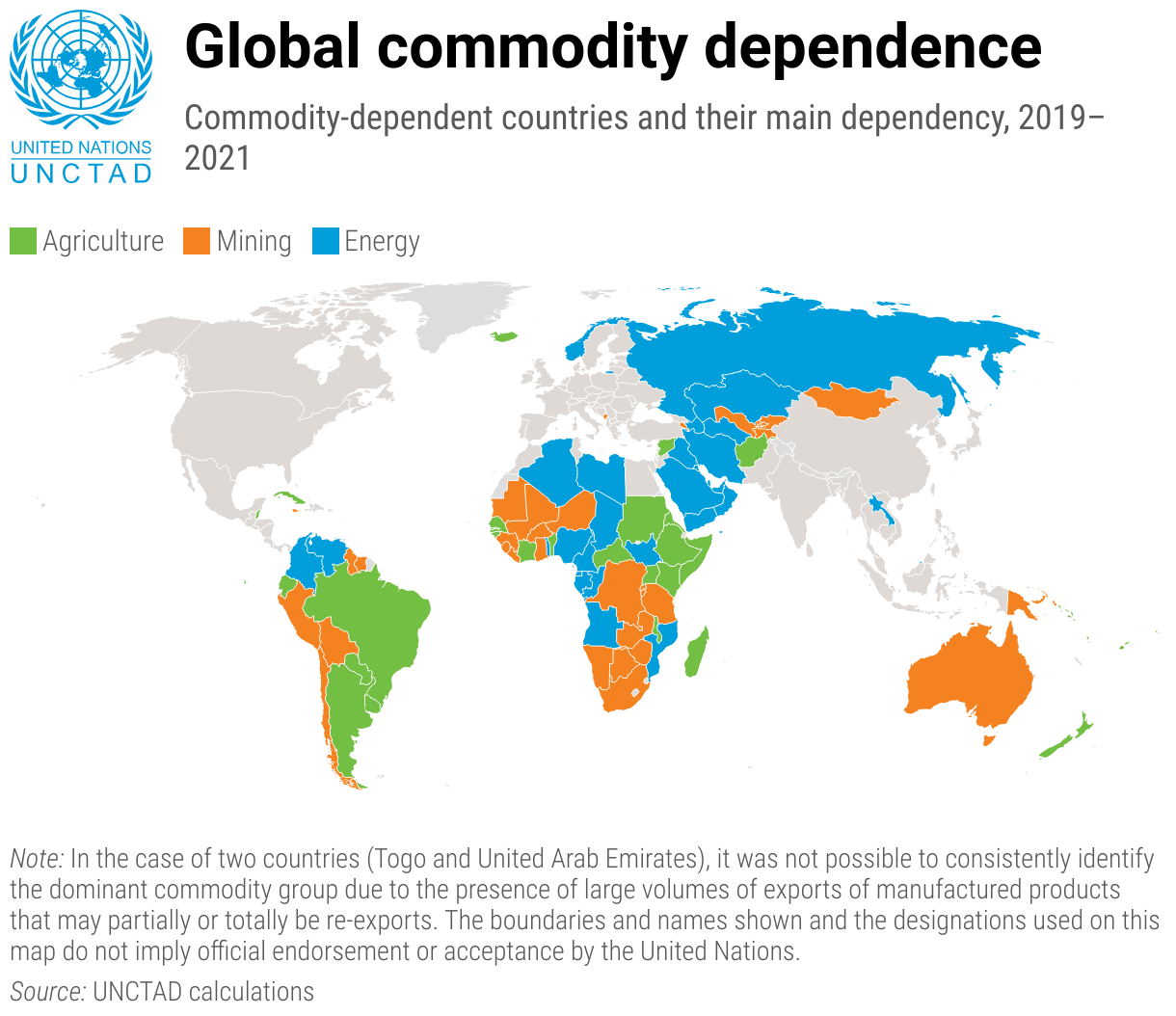

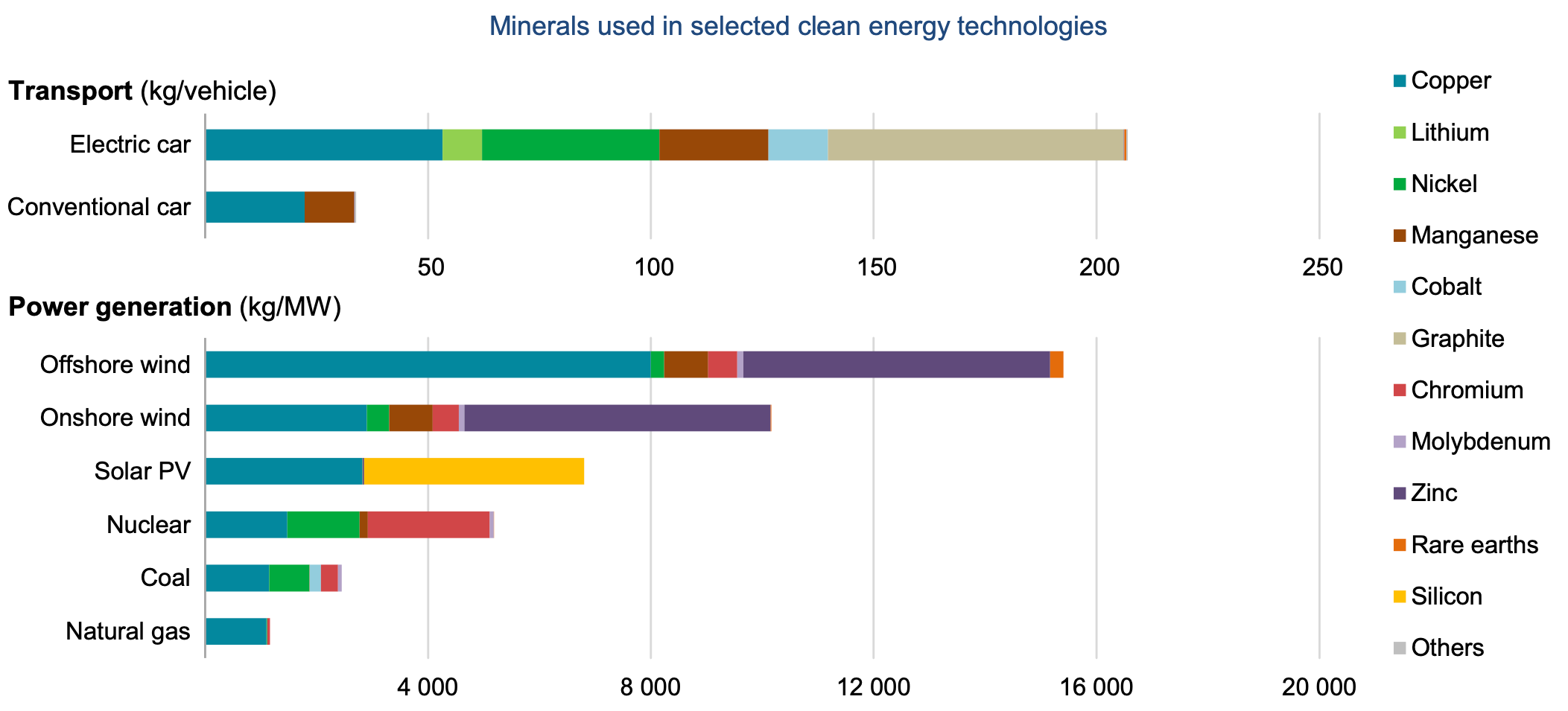

The grid's development heavily relies on critical minerals like copper, aluminum, lithium, nickel, cobalt, and rare earth elements. Copper and aluminum are essential for electrical wiring, transformers, and transmission lines, while lithium, nickel, and cobalt are crucial for energy storage systems.The demand for these commodities is expected to rise significantly as grids expand and modernize to support renewable energy and digital technologies.
However, this growing demand poses challenges related to supply, recycling, and environmental impact. For example, copper demand is projected to increase by more than 82% between 2021 and 2035, potentially leading to supply constraints and higher prices. Addressing these challenges requires coordinated efforts in policy-making, technological innovation, and strategic investments to ensure a reliable and sustainable supply of critical minerals for the grid's future.
AI Integration in Grid Management

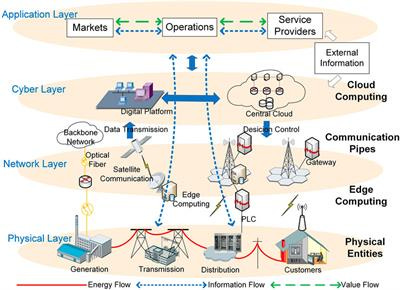

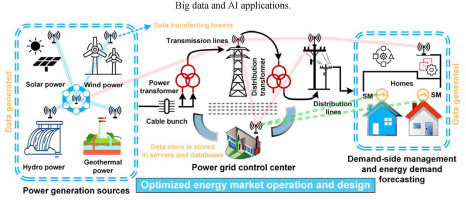

Integrating artificial intelligence (AI) into grid management offers numerous benefits, enhancing the efficiency, reliability, and resilience of the power grid. Some key advantages:
1. Optimizing Grid Operations
Load Forecasting: AI algorithms can predict energy demand patterns with high accuracy, allowing utilities to optimize power generation and distribution, reducing energy wastage and minimizing costs.
Predictive Maintenance: AI can analyze data from sensors deployed throughout the grid to detect anomalies and predict equipment failures, enabling proactive maintenance and reducing downtime.
2. Enhancing Renewable Energy Integration
Renewable Energy Forecasting: AI can analyze weather data and energy production forecasts to optimize the integration of renewable energy sources, ensuring a stable and reliable power supply.
Dynamic Energy Management: AI systems can dynamically adjust energy generation and distribution based on real-time conditions, maximizing the utilization of clean energy and reducing reliance on fossil fuels.
3. Improving Grid Resilience and Security
Anomaly Detection: AI algorithms can continuously monitor grid infrastructure, detecting anomalies and potential cybersecurity breaches, allowing for proactive responses to threats.
Self-Healing Capabilities: AI can enable the grid to automatically locate and fix faults, restoring power quickly and minimizing the impact of disruptions.
Cybersecurity: AI can identify and respond to cyber threats in real-time, leveraging advanced pattern recognition and anomaly detection techniques to safeguard critical infrastructure.
4. Enhancing Decision-Making and Efficiency
Faster Decision-Making: AI can process complex calculations and provide recommendations much faster than traditional methods, helping operators manage the grid more effectively.
Optimized Resource Allocation: AI can optimize the deployment of repair crews and other resources, accelerating response times and improving grid reliability.
5. Supporting Demand Response and Load Management
Demand Response Programs: AI can recommend strategies to shift energy usage to off-peak periods or encourage consumers to reduce consumption during peak times, reducing strain on the grid.
Personalized Energy Management: AI can provide tailored recommendations for individual consumers, helping them optimize their energy usage and save money
6. Facilitating the Integration of Distributed Energy Resources (DERs)
Optimizing DER Output: AI can analyze the output of DERs, grid conditions, and demand patterns to dynamically manage the flow of electricity, enhancing grid stability and increasing the utilization of renewable energy sources.
Companies appliying AI into grid management
Several companies are at the forefront of integrating artificial intelligence (AI) into grid management to enhance efficiency, reliability, and resilience:
General Electric applies AI for predictive maintenance and advanced analytics, while their Alpha Trader uses predictive analytics to optimize energy trading and renewable integration.
Siemens employs AI for real-time monitoring, fault detection, predictive maintenance, and optimizing repair crew deployment, improving grid reliability and reducing downtime.
Schneider Electric integrates AI for real-time monitoring, predictive maintenance, and optimizing energy distribution, partnering with Sense Energy Monitoring to provide consumption insights and load management tools.
IBM's AI-powered tools focus on vegetation management, predictive maintenance, and grid optimization.
Utilidata uses AI to improve grid reliability through real-time data analysis and predictive analytics. Their NVIDIA-powered smart chip attaches to meters, enabling utilities to locate and respond to outages more efficiently.
Pano AI applies deep learning and computer vision to images from high-definition cameras and field sensors to identify and verify wildfires.
Leap focuses on connecting behind-the-meter load to wholesale energy markets via its Distributed Energy eXchange. Their cloud-based platform uses AI optimization models to bid into deregulated markets.
Amperon integrates machine learning into their software to provide play-by-play demand and supply analytics.
Lunar Energy's Gridshare software uses AI to optimize energy usage and improve grid responsiveness.
These companies demonstrate the diverse applications of AI in grid management, from predictive maintenance and fault detection to optimizing energy distribution and integrating renewable energy sources, contributing to a more efficient, reliable, and resilient power grid.
Network Analysis for Grid Planning
Network analysis, particularly through graph theory, plays a crucial role in optimizing grid expansion and planning, especially for countries with limited resources. It helps in optimizing network topology, ensuring efficient use of resources, and identifying critical nodes and edges for maintaining grid stability. Examples:
1. Optimization of Network Topology
Graph theory helps in optimizing the topology of energy supply networks, ensuring efficient use of resources. For instance, the Prim minimum spanning tree (MST) algorithm can be used to solve the optimal network topology problem, minimizing the total length of transmission lines while ensuring all nodes are connected. This is particularly beneficial for countries with limited financial resources, as it helps in reducing infrastructure costs.
2. Resilience and Reliability Analysis
Network analysis can identify critical nodes and edges in the power grid, which are essential for maintaining grid stability. By simulating node failures and analyzing their impact on the grid, planners can prioritize investments in strengthening these critical components. For example, the use of PLANS and NetworkX in modeling power grid systems allows for high-accuracy statistical analysis of node failures, helping to ensure grid stability even under adverse conditions.
3. Efficient Resource Allocation
Graph theory can help to the efficient allocation of resources by identifying the most critical areas for investment. This includes optimizing the placement of new power lines, substations, and other infrastructure to maximize coverage and reliability with minimal expenditure. This approach is particularly useful in developing countries where financial and material resources are limited.
Examples of Network Analysis in Grid Planning
1. PLANS and NetworkX in Power Grid Modeling
In a case study using PLANS and NetworkX, each grid node was represented as a vertex, and connections between nodes were reconstructed as graph edges. This allowed for a detailed analysis of the impact of node failures on grid stability. The study demonstrated that removing any five nodes from the grid could lead to significant disruptions, highlighting the importance of robust network design.
2. Integrated Energy Systems (IES) in South China
A novel graph theory-based optimizing approach, called the layering and pruning method (L&PM), was used to solve the energy supply network (ESN) configuration problem in an integrated energy system in South China. This method optimized the overall topology and pipeline capacities, demonstrating significant improvements over traditional methods like the Prim algorithm. The approach ensured efficient use of resources while meeting the energy demands of the region.
3. Power Distribution in Developing Countries
In developing countries, power grid expansion planning often considers facility location, sizing, and transmission line upgrades. Network analysis helps in identifying the most effective and equitable ways to expand the grid, ensuring that even remote and underserved areas receive reliable electricity. This is crucial for improving living standards and supporting economic development in resource-scarce regions
Market vs. Government Planning
The debate between market-driven and government-planned grid development is ongoing. Market-driven approaches can lead to innovation and efficiency but may also result in underinvestment and fragmentation. Government planning can provide strategic coordination and ensure that investments align with national energy and climate goals. Public ownership and investment in grid infrastructure can reduce costs and improve the pace of development, as seen in some countries' efforts to re-nationalize their grids.
Different countries are adopting various strategies to secure grid reliability and expansion. For example:
European countries: Emphasizing the modernization of distribution grids and integrating digital technologies to handle increased renewable energy and electrification demands.
United States: Investing in grid resilience and flexibility through advanced technologies and regulatory reforms to support the integration of DERs and renewable energy.
Developing Countries: Focusing on smart grid technologies to improve energy access, reduce losses, and integrate renewable energy sources efficiently
Conclusion
In summary, the grid is a vital component of the energy system, with significant implications for both developing and developed countries. Innovations in grid technology, strategic planning, and investment are essential to ensure reliable, efficient, and sustainable energy distribution in the future.
