Anti-Drone Warfare: Modern Technologies and Energy Implications
Drones have recently evolved from playing a supporting role in military operations to becoming an essential component of modern warfare. Their cost-effectiveness, versatility, and ability to operate without risking human lives have made them increasingly attractive to armies, militias and threat actors worldwide. Drones offer several key advantages in modern warfare:
Low cost compared to traditional manned aircraft.
Ability to conduct long-duration surveillance and reconnaissance missions.
Precision strike capabilities without risking pilot lives.
Real-time situational awareness and improved targeting.
Suppression and destruction of adversary air and missile defenses.
The ongoing conflict in Ukraine has highlighted the game-changing potential of drones in conventional warfare. Both sides have extensively deployed military and commercial drones for tasks ranging from reconnaissance to precision strikes. Low-cost kamikaze drones and lightweight suicide drones have proven particularly effective, accelerating the trend of viewing drones as disposable ammunition rather than reusable platforms.
However, the effectiveness of drones depends heavily on factors like intelligence quality, communication links, and integration into broader warfighting concepts. As drone technology advances, armies must adapt their tactics and defenses to counter this emerging threat.
Relevance of Novel Anti-Air Drone Technologies for Security Against Swarm or Small Drone Attacks
The proliferation of small, cheap drones has created new security challenges, particularly the threat of swarm attacks or individual drones being used for malicious purposes. This has created the development of novel anti-drone technologies to protect critical infrastructure, military assets, and civilian areas. Key reasons why anti-drone technologies are crucial:
Conventional air defense systems are often ineffective against small, low-flying drones.
The low cost of drones makes them attractive for asymmetric warfare.
Swarm attacks can overwhelm traditional defenses.
Drones can be used for surveillance, smuggling, or as weapons platforms.
Effective anti-drone systems need to provide multi-protection against different kind of threats, from hobbyist drones accidentally entering restricted airspace to sophisticated state-sponsored attacks. The ideal system should be able to detect, track, identify, and neutralize drones quickly and cost-effectively.
Novel Anti-Drone Technologies: Advantages, Disadvantages, and Developers
Several innovative anti-drone technologies have emerged in recent years:

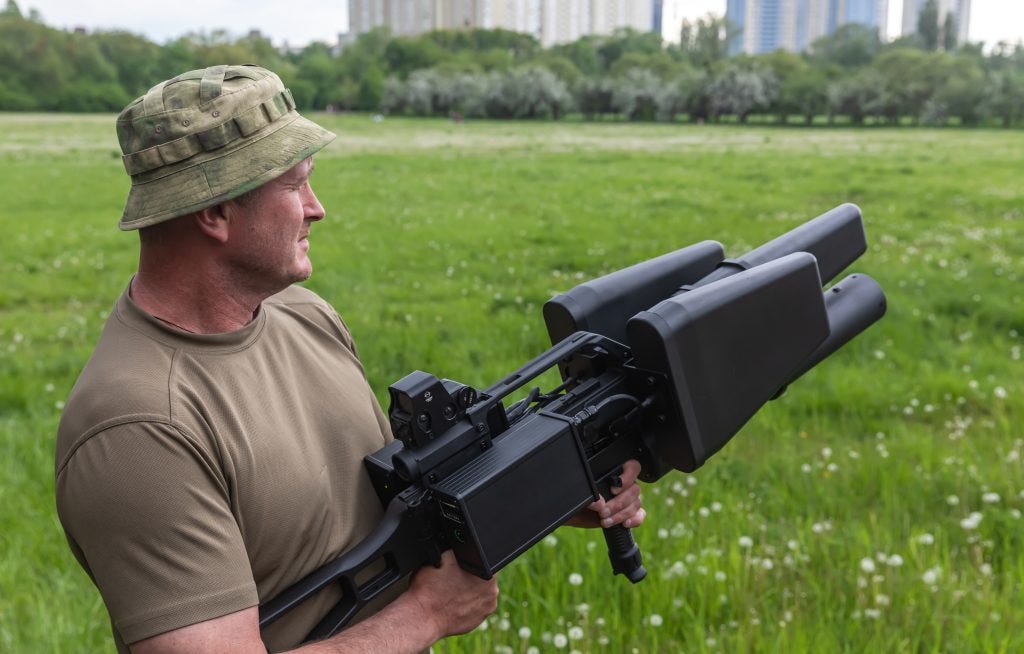

Anti-Drone Guns: Handheld devices that disrupt drone control signals.
Advantages: Portable, easy to use
Disadvantages: Limited range, may affect other electronic devices
Example: DroneGun by DroneShield
Source: https://cepa.org/comprehensive-reports/an-urgent-matter-of-drones/

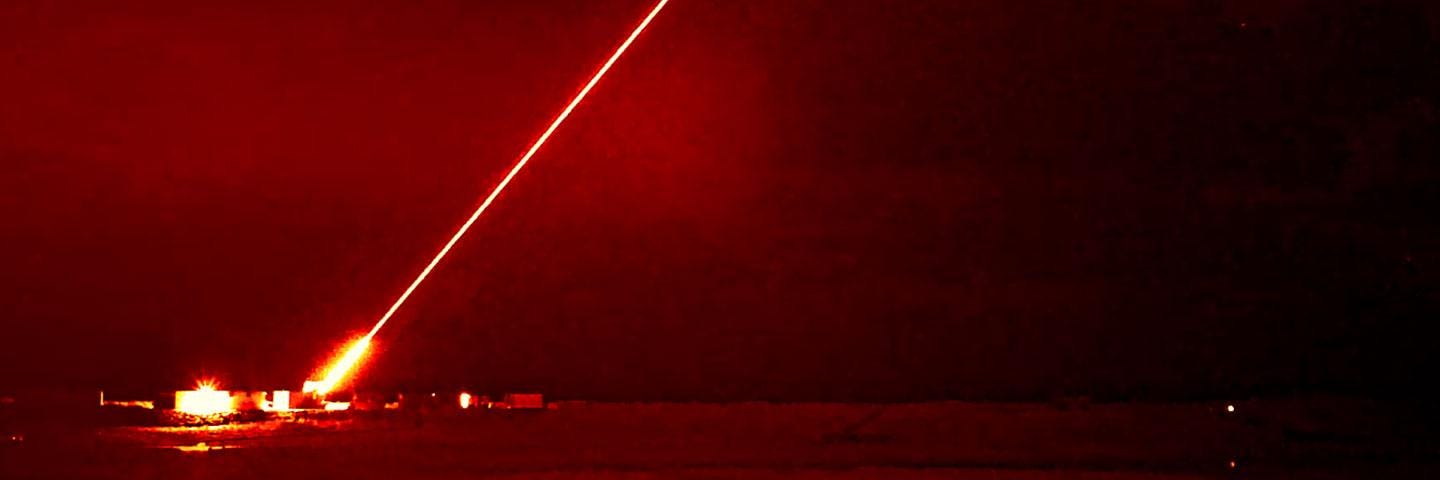

Laser Systems: High-energy lasers that can disable drones.
Advantages: Precise, low cost per engagement
Disadvantages: Weather-dependent, potential collateral damage, easily to render ineffective with metallic reflection materials
Example: High Energy Laser Mobile Demonstrator (HEL MD) by Boeing or the DragonFire system by the UK's Defence Science and Technology Laboratory
Source: https://uk.leonardo.com/en/news-and-stories-detail/-/detail/dragonfire-laser-achieves-another-uk-first
RF Jamming Systems: Disrupt drone communication links.
Advantages: Effective against multiple drones simultaneously
Disadvantages: May interfere with legitimate communications
Example: OBSIDIAN by QinetiQ
Source: https://www.qinetiq.com/-/media/83350c23594c47108359e1213de0cd29.ashx
Kinetic Interception: Using projectiles or other drones to physically neutralize threats.
Advantages: Effective against hardened drones
Disadvantages: Risk of debris, higher cost per unit
Example: Counter-drone interceptors by Anduril
Source: https://techcrunch.com/2021/06/17/anduril-funding-series-d-valuation/
AI-Powered Detection and Tracking: Advanced software for identifying and tracking drone threats.
Advantages: Can handle multiple threats, reduces false positives
Disadvantages: Requires significant computing power
Example: AirScout Sentry by Walaris
Source: https://www.vision-systems.com/cameras-accessories/article/14299048/drone-detection-system-uses-ai-to-fight-prison-contraband-smuggling
Each technology has its strengths and weaknesses, and the most effective anti-drone strategies often involve a combination of multiple approaches.
The Electricity importance in Drone Warfare
The shift from diesel to electric power is a significant trend in drone technologies. This transition offers several advantages:
Reduced noise signature for stealthier operations.
Lower thermal signature, making detection more difficult.
Improved energy efficiency and lower operating costs.
Potential for longer endurance through advanced battery technologies.
However, the limited energy density of current battery technologies compared to fossil fuels remains a challenge, particularly for larger drones or extended missions.To address this, research is ongoing into novel power solutions:
Wireless power transfer: DARPA is funding research into using lasers to beam power to drones in flight, potentially allowing for indefinite operation.
Fuel cells: Hydrogen fuel cells offer higher energy density than batteries and could extend drone flight times significantly.
Solar power: For high-altitude, long-endurance drones, solar panels can supplement battery power.
Particularly, in the case of anti-drone technologies such as laser powered or use of high frequencies, electricity is the core source of power, and their use will be more and more relevant once these technologies will be deployed.
The development of adaptive storage and power solutions is crucial for the future of drone warfare. Systems that can efficiently manage power consumption, rapidly recharge, or even harvest energy in flight will provide significant tactical advantages.
In summary, the energy implications of anti-drone warfare technologies:
Power Consumption: Many anti-drone systems, especially those for detection, electronic warfare, and directed energy weapons, require significant power input. This leads to high energy consumption during operation.
Continuous Operation: Detection systems often need to run constantly, demanding a consistent and reliable power supply. This creates a need for robust energy infrastructure or advanced mobile power solutions.
Mobile Power Challenges: For deployable systems, there's a growing demand for high-capacity, lightweight batteries or efficient portable generators to meet power needs in the field.
Energy Storage: Rapid response capabilities and sustained operations necessitate advanced energy storage solutions. This is driving research and development in battery technologies and other storage methods.
Efficiency Improvements: As anti-drone systems become more widespread, there's an increasing focus on improving their energy efficiency to reduce operational costs and enhance deployability.
Renewable Integration: Some fixed anti-drone installations are exploring the use of renewable energy sources like solar or wind power to supplement traditional energy sources, potentially reducing long-term energy costs and environmental impact.
Power Generation Advancements: The high power requirements of some systems, particularly directed energy weapons, are pushing advancements in compact, high-output power generation technologies.
Energy Management: Integrated anti-drone systems that combine multiple technologies require sophisticated energy management to optimize power distribution and usage across different components.
These energy implications are driving innovation in power-related technologies, with the goal of creating more effective, efficient, and deployable anti-drone warfare systems. The balance between operational effectiveness and energy efficiency remains a key challenge in this rapidly evolving field.
Civil and Government Implications
The fast advancement of drone and anti-drone technologies has significant implications for both civil society and governments:
Civil Implications
Privacy concerns due to increased aerial surveillance capabilities.
Potential disruptions to air traffic and critical infrastructure.
New economic opportunities in the drone industry.
Need for public education on drone regulations and safety.
Government Implications
Necessity for updated laws and regulations governing drone use.
Investment in anti-drone systems to protect sensitive facilities.
International cooperation to address cross-border drone threats.
Ethical considerations regarding autonomous drone operations.
As drone technology continues to advance, it will be important for governments to balance security needs with civil liberties and to develop strategies for integrating drones into national defense and civilian applications.
In conclusion, the emergence of drone warfare and corresponding anti-drone technologies represents a significant shift in modern military and security operations. As these systems become increasingly electric-powered and AI-driven, adaptive energy solutions and robust defensive measures will be critical to maintaining strategic advantages and ensuring public safety.
For a very comprehensive report on drone warfare: https://cepa.org/comprehensive-reports/an-urgent-matter-of-drones/
SOURCES:
https://www.defence-industries.com/articles/top-5-anti-drone-technologies
https://www.research-collection.ethz.ch/bitstream/handle/20.500.11850/606858/6/ThewarinUkraineshowsthegamechangingeffectofdronesdependsonthegame.pdf
https://www.politico.eu/article/drones-are-changing-warfare-the-eu-needs-to-catch-up-ukraine-gaza-conflicts/
https://www.ncbi.nlm.nih.gov/pmc/articles/PMC7672221/
https://asiatimes.com/2023/12/us-aims-to-power-up-drones-with-lasers/
https://www.nature.com/articles/s41467-017-02411-5
https://www.militaryaerospace.com/home/article/14283667/novel-vision-system-autonomously-detects-and-identifies-drone-threats
https://www.anduril.com/article/the-future-of-air-defense/
https://www.qinetiq.com/en/what-we-do/services-and-products/counter-drone-systems
https://www.defensenews.com/industry/techwatch/2024/01/19/in-first-uk-downs-aerial-drone-with-test-shot-from-dragonfire-laser/
